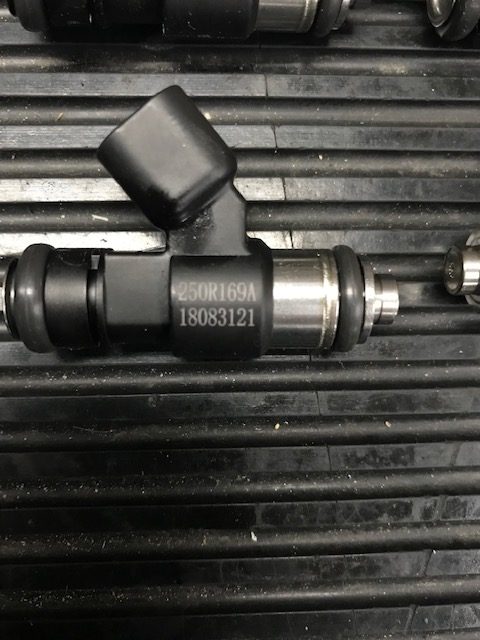

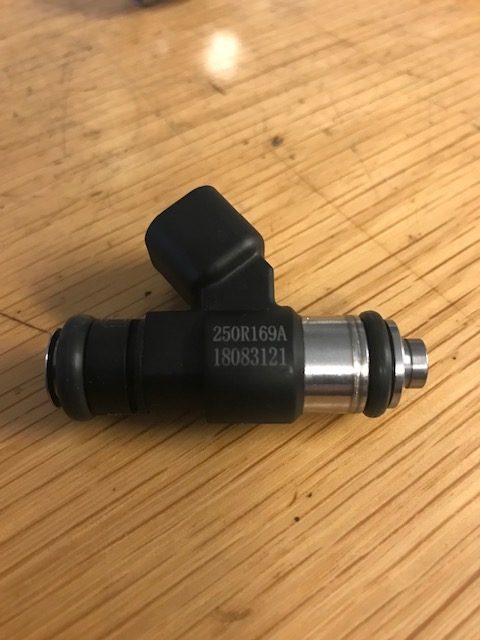

Holley Sniper EFI Fuel Injectors 522-101X
Insprutare, Spridare
Passar: Holley sniper EFI 550-510
Brand:
Manufacturer’s Part Number:
522-101X
Part Type:
Product Line:
Summit Racing Part Number:
HLY-522-101X
UPC:
090127127261
OEM Replacement:
No
Injector Advertised Flow Rate (lbs./hr.):
100 lbs./hr.
Injector Advertised Flow Rate (cc/min.):
1,050.0cc/min.
Injector Plug Style:
USCAR
Injector Body Style:
EV6/Pico
Injector Impedance:
12.2 ohms
Driver Type:
12V saturated circuit
Overall Height (in.):
1.85 in.
Seat to Seat Height (in.):
1.421 in.
Outside Diameter (in.):
0.650
Wiring Harness Included:
No
O-Rings Included:
Yes
Remanufactured:
No
Quantity:
Sold individually.
Notes:
High-impedance injectors.
Special Attention:
Compatible with many Sniper throttle body systems as well as LSA, LS3, LS7, L76, L92, L98, L99, LS9 OEM LS intake manifolds
Beskrivning av artikel
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings.
These injectors provide excellent linearity with no discernible ”bounce” at low pulse widths as commonly found in other injectors.
With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application.
These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Features:
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow: 100 lb./hr. at 60 PSI of base fuel pressure
- USCAR injector connector
- 40mm o-ring to o-ring length
- Compatible with many OEM LS Intake Manifolds: LSA, LS3, LS7, L76, L92, L98, L99, LS9
