Beskrivning
Hydraulisk urtrampningslager till Tenaci,Tilton, ACE Racing, Quartermaster Ap. 184 mm 7,25″ koppling.
Den ska inte användas till 240mm koppling
Kan användas till ZF låda om man tar bort hylsan som urtrampningslagret glider på.
Passar även Tex-101 och en massa ”jänke”-lådor.
OBS !!!!!
Var noga och kolla så man kör med rätt kopplings cyl så man inte ”överfyller” utrampningslagret.
Dvs att då trycker man in för mycket olja och då rider den på gummiringarna och man kör sönder lagret.
Montera pedalstopp.

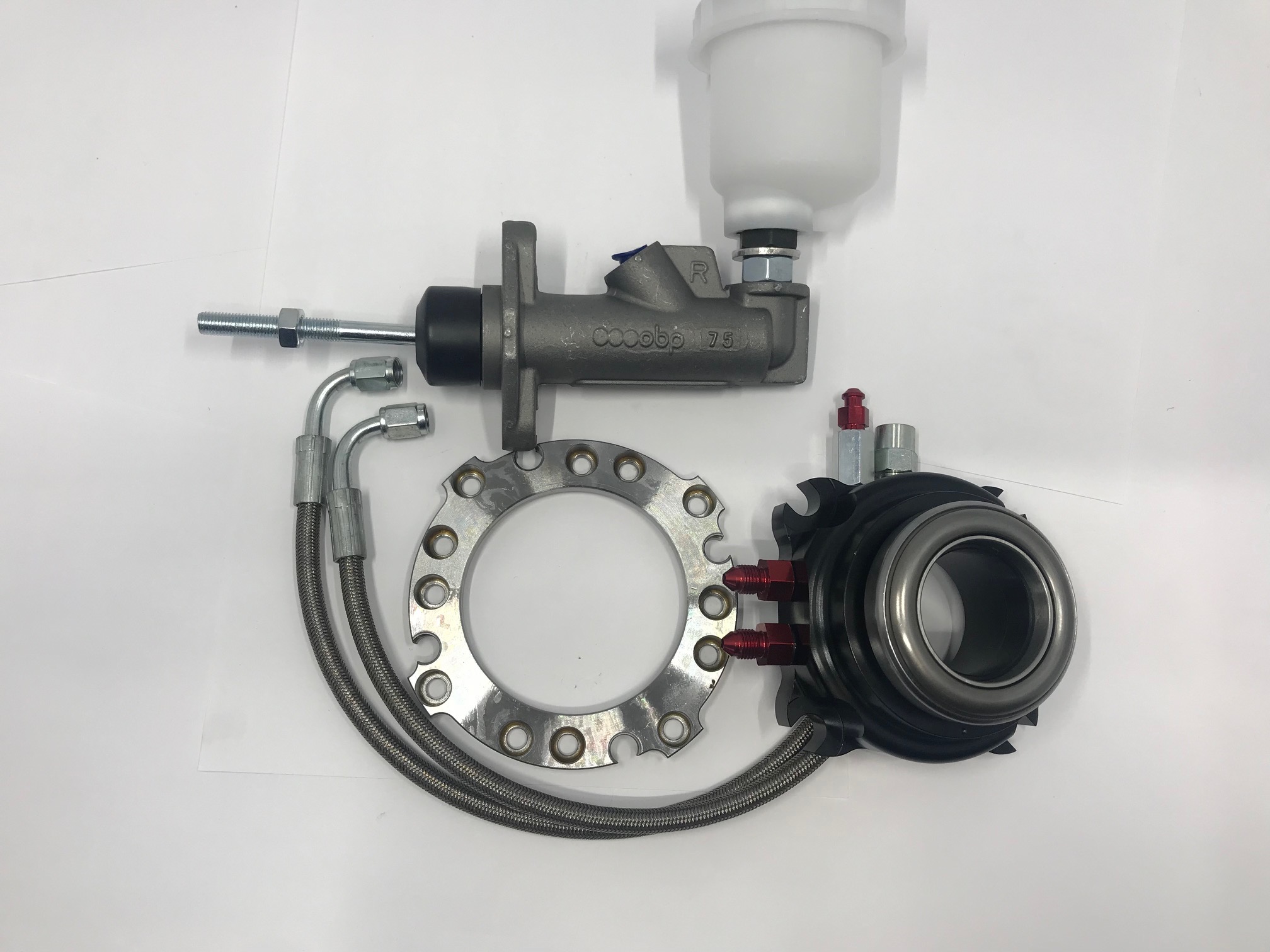

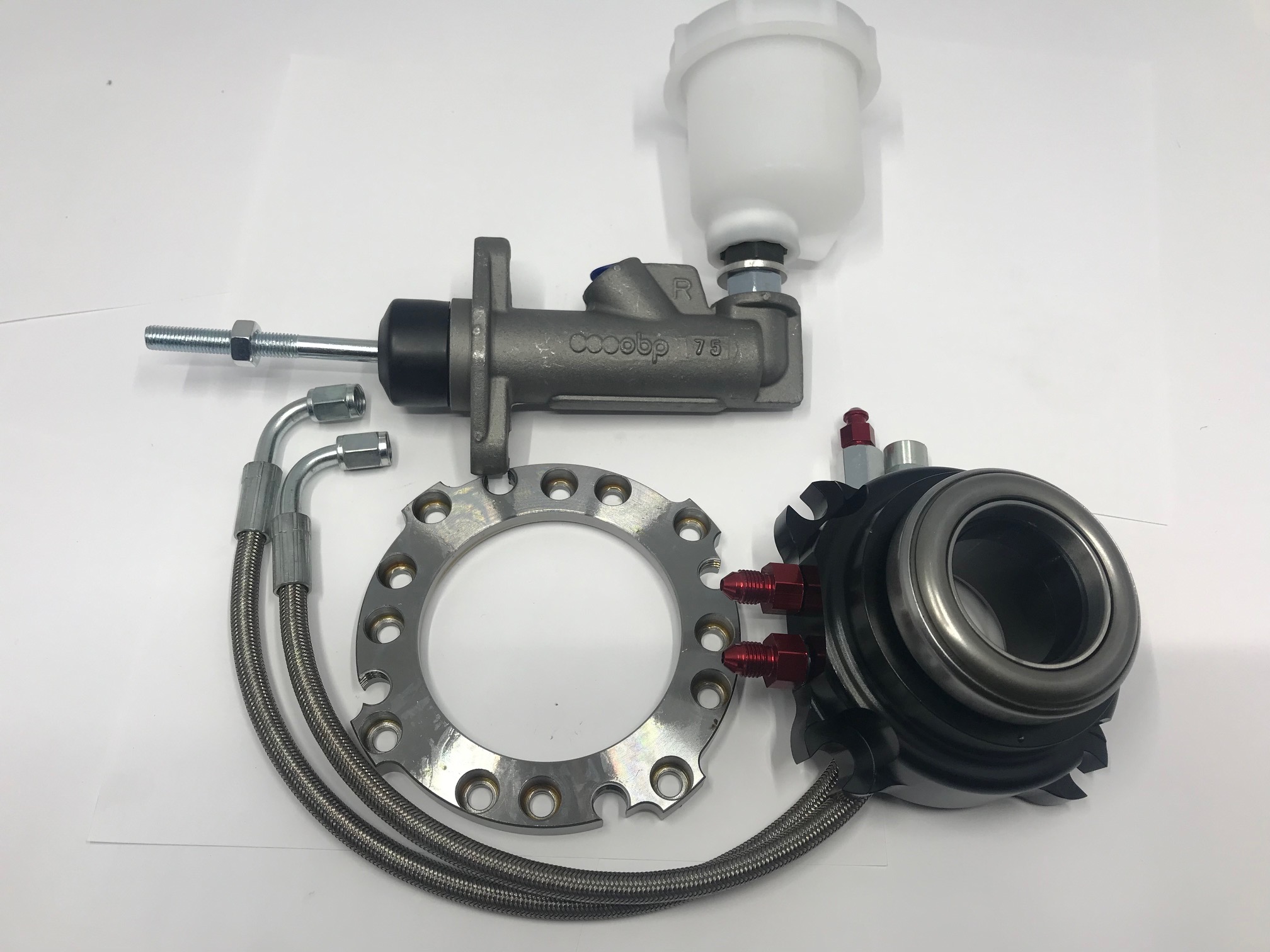

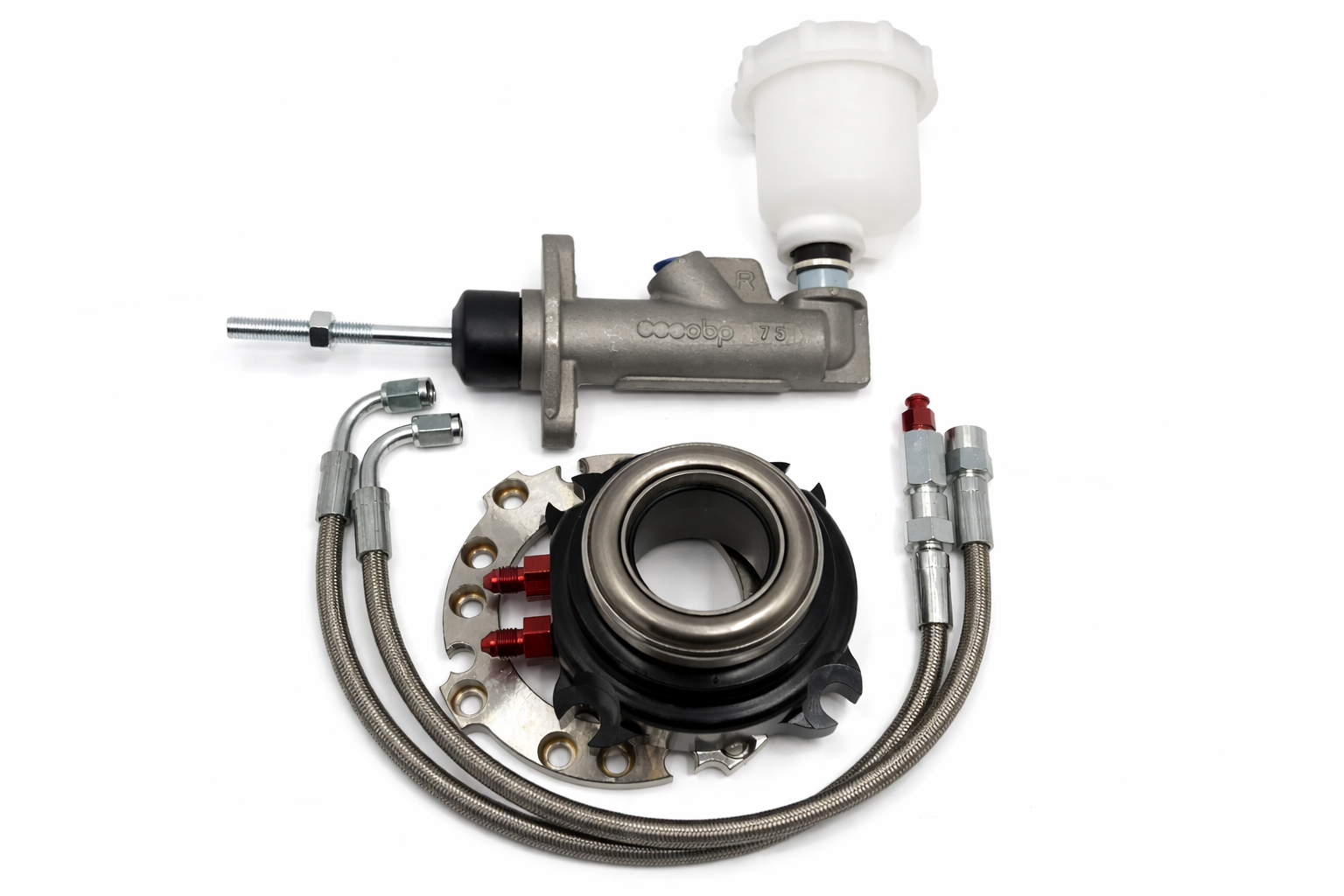

Kitet består av.
Cylinder OBP 0,75 b07500499
Lager: t00184240
Adapterplatta:
Distanser: b00530321-1

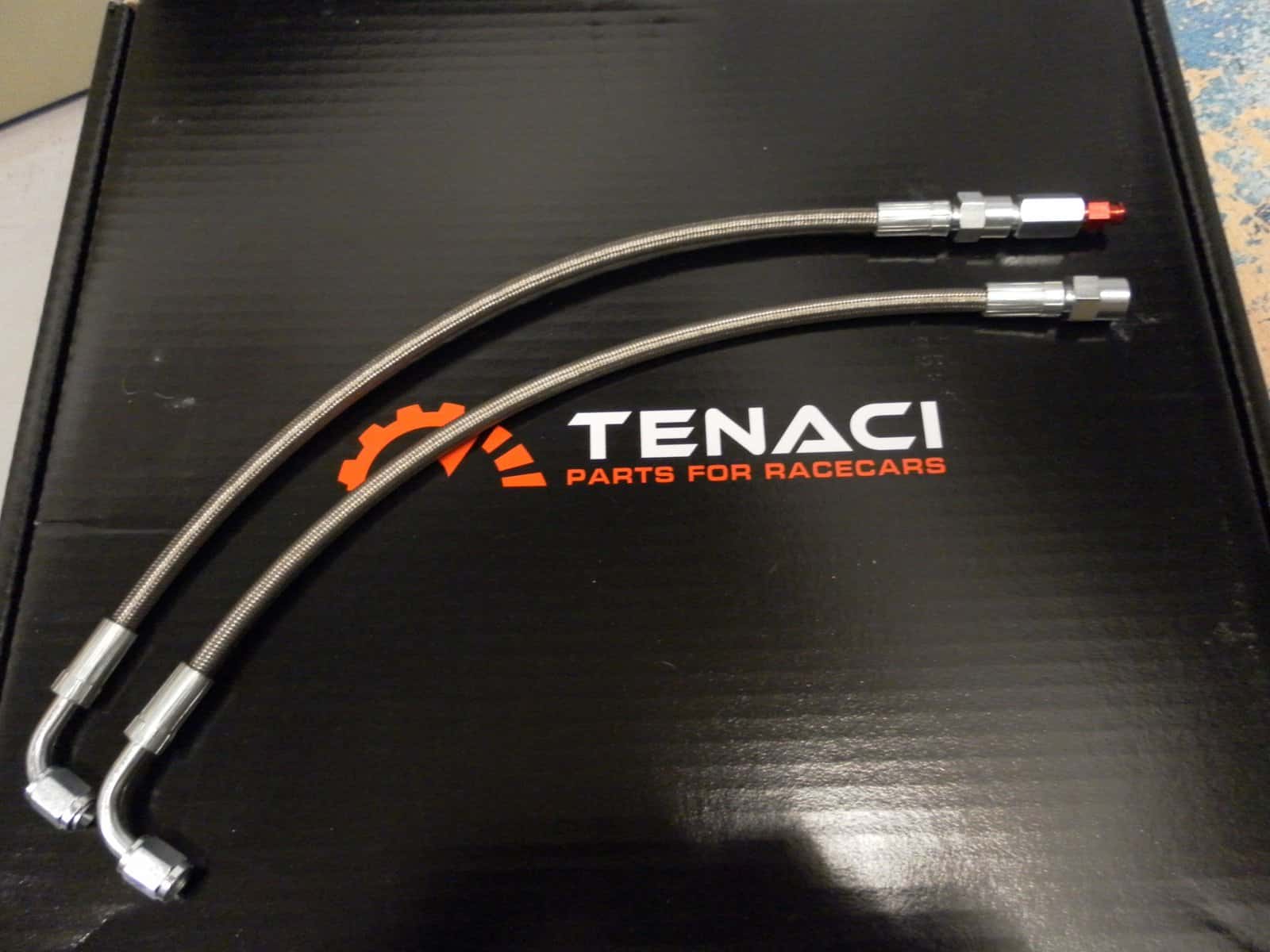

Slangar: t00000001
Oljekopp: b07510070
clutc
eDal s
top

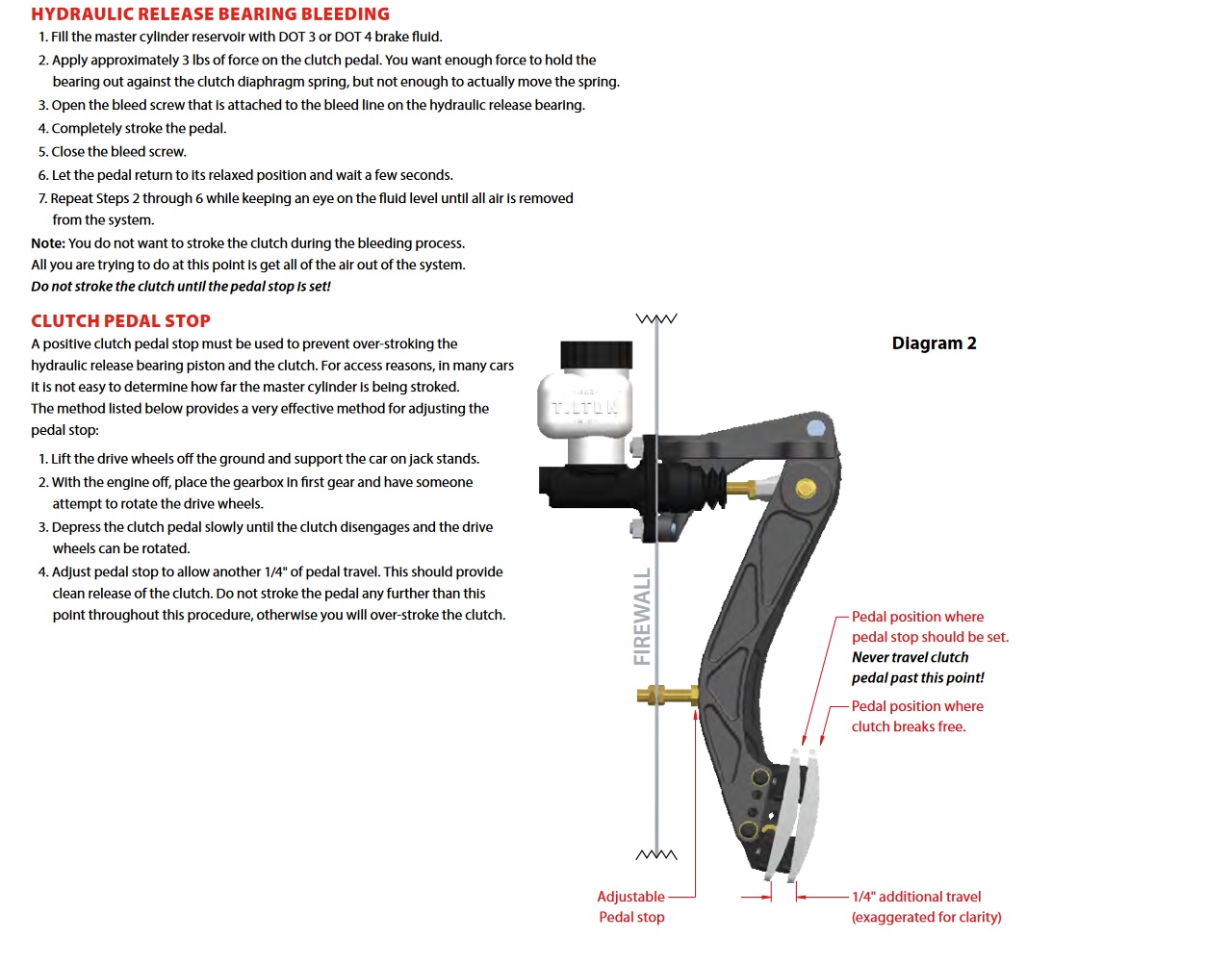

A positive clutch pedal stop must be used to prevent over-stroking the
hydraulic release bearing piston and the clutch. For access reasons, in many cars
it is not easy to determine how far the master cylinder is being stroked.
The method listed below provides a very effective method for adjusting the
pedal stop:
1. Lift the drive wheels off the ground and support the car on jack stands.
2. With the engine off, place the gearbox in first gear and have someone
attempt to rotate the drive wheels.
3. Depress the clutch pedal slowly until the clutch disengages and the drive
wheels can be rotated.
4. Adjust pedal stop to allow another 1/4″ of pedal travel. This should provide
clean release of the clutch. Do not stroke the pedal any further than this
point throughout this procedure, otherwise you will over-stroke the clutch.
