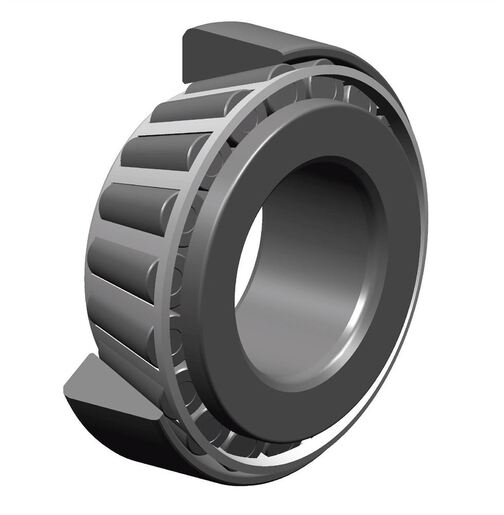

4T-32008X NTN Koniskt Rullager 40x68x19Beskrivning
Lager NTN 4T-32008X
| Brand | NTN |
| d – Internal diameter | 40 mm |
| D – External diameter | 68 mm |
| B – Bearing/Inner ring width | 19 mm |
| C – Outer ring width | 14,5 mm |
| T – Total width | 19 mm |
| d1 – External diameter inner ring | 54,5 mm |
| a – Charge load application point | 15 mm |
| rs – Min fillet radius | 1 mm |
| r1s – Min fillet radius | 1 mm |
| Mass | 0,272 kg |
| ISO 355 reference | T3CD040 |
