Beskrivning

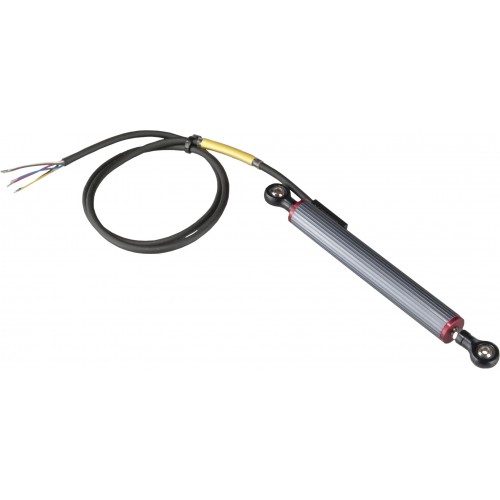

Potentiometer som används med pedalställen när man använder ett elektronsikt gasspjäll.
OBP Motorsports V3 billet aluminium pedalställ är föreberedda för denna så den kan enkelt monteras direkt på dessa pedalställ.
Installations och specifikationsbeskrivning:
Specifications:
- Maximum Supply Voltage – 40 VDC,
- Resolution – Essentially Infinite,
- Repeatability – ≤0.01mm,
- Operational Speed – 10 M/s max,
- Mechanical Life – > 25 Million Cycles,
- Recommended Wiper Current – < 10μA,
- Independent Linearity – ≤ +/- 0.5%
Connection & Output Details
6 Core Cable
Track 1
- Red = +V
- Black = 0V
- Yellow = Signal
Track 2
- Brown = +V
- Blue = 0V
- White = Signal
Displacement
- Fully Closed = +Vmax
- Fully Open = 0V
The displacement signals may be reversed by swapping the connections to the Red & Black wires or Brown & Blue wires, providing +Vmax output when Full Open & 0V when fully closed.
DO NOT connect +V supply to the Yellow and White (signal) wires, as this may cause damage to the sensor element.
